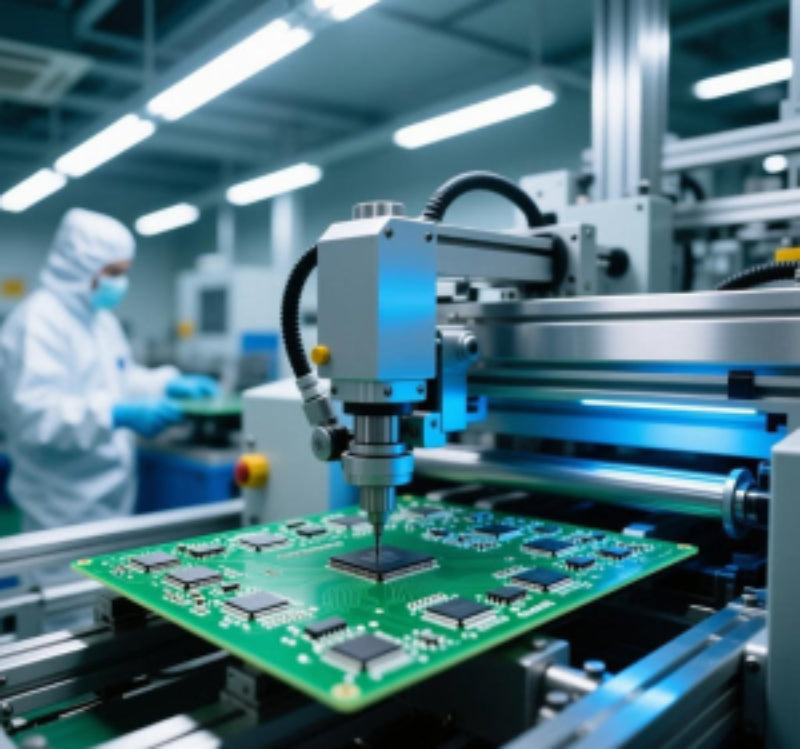

Prototype to Medium Volume PCB Assembly You Can Trust
We provide PCB assembly services for prototype, low-volume, and medium-volume production — from 1-piece engineering builds to 10,000+ piece production runs. Whether you’re validating a new design or scaling to market, our turnkey PCBA process gets you functional boards faster, with the quality systems to back them up.
Full-Turnkey PCB Assembly Capabilities
Our 30 SMT lines handle the complete assembly process under one roof — no outsourcing, no quality gaps:
| Process | Equipment | What It Means for You |
|---|---|---|
| SMT Assembly | High-end FUJI mounters ×30 lines | ±0.025mm placement accuracy for 01005 components and fine-pitch BGA |
| Reflow Soldering | 10-zone reflow ovens | Precise thermal profiles for lead-free and leaded processes |
| Solder Paste Inspection | 100% SPI on every board | Catch defects before reflow — lower rework, higher first-pass yield |
| Automated Optical Inspection | Post-reflow AOI on all lines | Every solder joint verified, not just sampled |
| X-Ray Inspection | For BGA, QFN, and hidden joints | Verified solder quality where AOI can’t see |
| BGA Rework & Repair | Dedicated rework stations | Cost-effective rework instead of full board scrap |
One Partner for the Entire Production Process
SMT & Through-Hole Assembly — Single-sided and double-sided, mixed technology, odd-form component insertion.
PCB Fabrication — Optional bare board sourcing with your assembly order, guaranteed stack-up compatibility.
Functional & In-Circuit Testing (ICT/FCT) — Test fixtures built in-house; we verify your board works before it ships, not after it fails in the field.
Box Build & Final Assembly — Cable assembly, enclosure integration, firmware loading, labeling, and packaging — boards arrive ready to plug in.
Why Engineers Choose Us for Low-Volume PCBA
• No minimum order quantity — order 1 board or 10,000
• Quick-turn options — 24–72 hour prototype assembly available
• IPC-A-610 Class 2 & Class 3 certified workmanship
• DFM review included free — our engineers flag manufacturability issues before production, saving you one spin
• Component sourcing with anti-counterfeit controls — authorized distributors only, full traceability
PCB Assembly Quality Certifications
IPC-A-610 Class 2/3 · ISO 9001 · ISO 13485 · IATF 16949
Frequently Asked Questions
What volumes do you support?
We assemble from a single prototype board up to medium-volume runs of 10,000+ pieces per order, with no minimum order quantity.
How fast can you turn around a prototype assembly?
Standard prototype PCBA is 5–7 working days; expedited 24–72 hour turnkey assembly is available for most designs.
Do you provide turnkey or consigned assembly?
Both. Send us Gerbers and a BOM for full turnkey service, or ship your components for consigned assembly.
Can you handle BGA and fine-pitch components?
Yes. Our FUJI placement lines and X-ray inspection support 01005 passives, 0.3mm-pitch BGAs, QFN, and connectors.
Ready to get your boards built? Upload your Gerber files and BOM for a free DFM review and quote within 24 hours.
[Get an Instant Quote →] ｜ Email:info@geomadepcb.com
